Electric outboard engines

These high end electric outboard engines offer exceptional high thrust & speed (up to 660 lbs static thrust) and make electric propulsion a real alternative to petrol engines. The strong AC or brushless motors allow even water skiing. Clean and sustainable operation combined with low maintenance costs. Also check our inboard range. These are no trolling motors or cheap DC brushed motors. Real engines for professional use! The future of marine Propulsion

Green POWER

best for commercial and pleasure craft

Especially for light weight planning hulls and displacement boats up to 3 tons Tested on Boat:

Zille mit AGM Batterien10 Knoten / 18 km/h
RIB mit LI ion Batterien17 Knoten / 31 km/h


Much more power output and thrust than conventional electric boat motors.
Build with seawater resistant aluminium. Digital motor controller.
Highly efficient water-cooled AC induction motor.
Suitable for saltwater with zinc anode

2 versions available: Type T tiller version, type R for single lever control

Power input/Output 15,5 kW / 13 kW
Transom height20 inch
Nominal Voltage48/50 V
Current from battery max 320 Amp
Weight52 Kg
Propeller size9,25 bis 10 Zoll
Thrust with standard Propeller 112 da N /135 da N
Thrust with thrust Propeller 123 da N /148 da N
Maximum speed23 knots
Range of useLakes, rivers, coast, salt water use
BatteryLithium battery 50 V 160—600 Ah
AGM lead batteries from 150 Ah


Electric Outbords Catalogue 2016


Pricelist AB Motor VK 1 2016


LI Batt Catalogue EN 3 2016 150


Green RACING

Pleasure craft motor optimized for high speed

For lightweight planning hulls
Not suited for high thrust applications
Tested on Boat:

Rivers and tides BootOx22 Knoten / 40 km/h
aquawatt RIB 45023 Knoten / 43 km/h
Cosmo 60023 Knoten / 43 km/h


Water cooled 3 phase induction motor for undreamt speed.
Available with tiller control or for single lever control.

Type T with tiller control, type R for single lever control

Power input / Output 26 kW / 22 kW
Transom height 20 inch
Nominal voltage 80 V
Current from battery max 320 Amp
Weight63 Kg
Propeller size9,25 inch
Thrust with standard Propeller 150 da N
Thrust with thrust Propeller x
Maximum speed26 knots
Range of uselakes, rivers, coast, fresh and salt water use
Battery
Lithium Battery 80 V 160-200 Ah


Electric Outbords Catalogue 2016


Pricelist AB Motor VK 1 2016


LI Batt Catalogue EN 3 2016 150

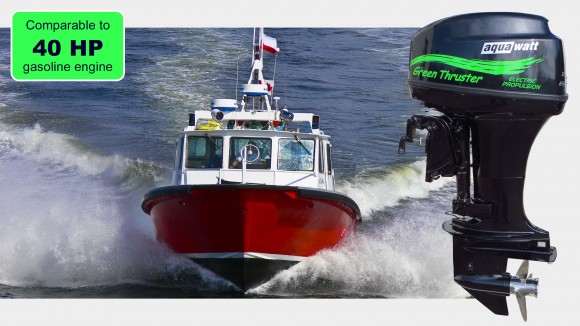

Green THRUSTER

Heavy duty thrust Motor

For displacement hulls pending 10 tons and planning boats up to 1000 Kg Tested on Boat:

18m passenger vessel "Neuhaus"
120 people, 2 engines
7,5 knots / 14 km/h
Diverse planning hulls 800—1000 kg 13-16 knots / 24/30 km/h


Water cooled 3 phase induction motor for high thrust. Digital motor controller.

Type R for single lever control

Power input / Output 26 kW / 22 kW
Transom height 20 inch
Nominal voltage 80 V
Current from battery max 320 Amp
Weight94 Kg
Propeller size12 inch
Thrust with standard Propeller 250 da N
Thrust with thrust Propeller 300 da N
Masimum speed22 knots
Range of useRivers, lakes, coast , fresh and salt water
Bettery
lithium battery 80 V 160—600 Ah or 7 x 12 V = 84 V AGM batteries from 150 Ah


Electric Outbords Catalogue 2016


Pricelist AB Motor VK 1 2016


LI Batt Catalogue EN 3 2016 150


Green FLASH

most powerfull aquawatt electric outboard

Tested on Boat:

Cosmo 60028 knots / 52 km/h
aquawatt 560 open28 knots / 52 km/h


Water cooled 3 phase high power induction motor. Digital motor controller.
Type R for single lever control

Power input / Output 50 kW / 42 kW
Transom height20 inch
Nominal voltage144 V
Current from battery max360 Amp
Weight98 Kg
Propeller size12 inch
Maximum speed30 knots
Range of useRivers, lakes, coast , fresh and salt water
Battery
lithium battery 144 V 160—200 Ah


Electric Outbords Catalogue 2016


Pricelist AB Motor VK 1 2016


LI Batt Catalogue EN 3 2016 150


Propeller

For the efficiency of a electric outboard the propellers precision and excellence is most important. For every aquawatt outboard at least 3 dimensions aluminium and 3 dimensions stainless steel propel-lers are available. The strength of stainless steel enables thin propeller blades. This is very helpful when driving high speed. On the other hand aluminium propellers have a low weight. We are experienced 25 years in electric boating and can recommend the right propeller dimension for all applications.
